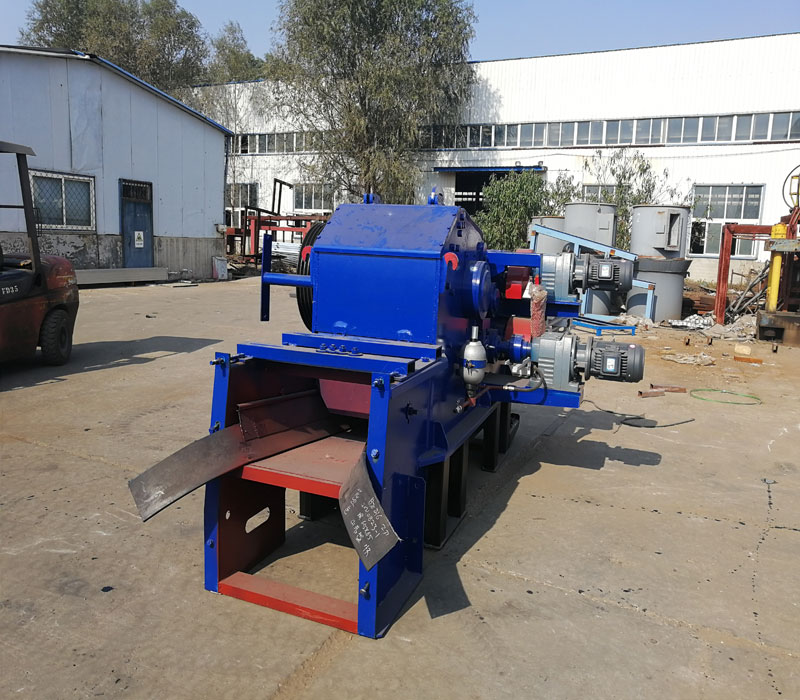

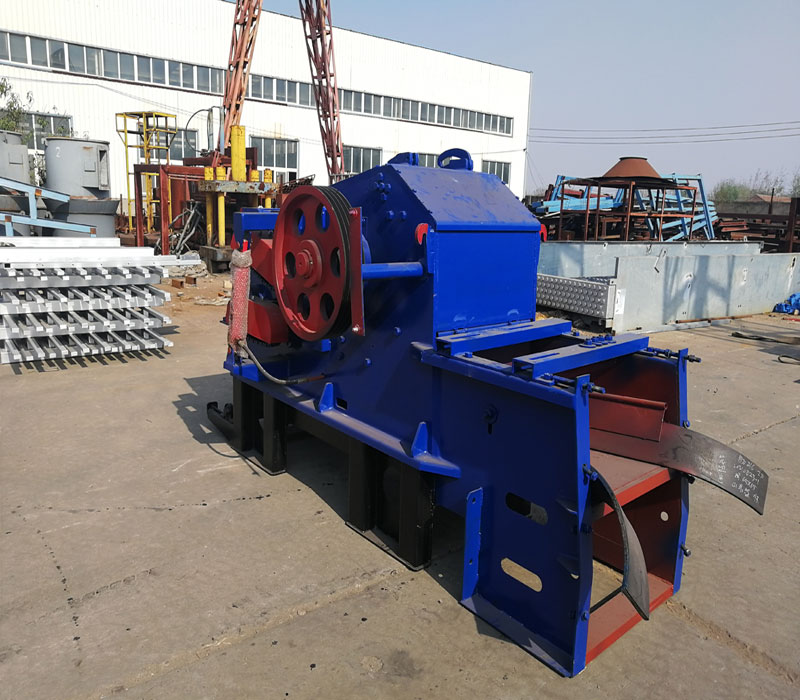

Wood Crusher Machine
Wood chipper shredder is the normally used machines in wood working field. It is used to chip the wood pieces, wood blocks and other waste wood into small pieces. The wood chippers machine can be used together with shine veneer roller dryer, core veneer dryer, face veneer dryer machine and biomass burner.

Wood Crusher


Wood chipper shredder is the normally used machines in wood working field. It is used to chip the wood pieces, wood blocks and other waste wood into small pieces. The wood chippers machine can be used together with shine veneer roller dryer, core veneer dryer, face veneer dryer machine and biomass burner. As the wood chips size of the biomass burner can not be so big size, the wood chipper can chip the waste wood into pieces about size 3-4cm. In addition to wood veneer dryer, the wood chipper can also be used in other field of woodworking filed. It is very high efficiency chipping machines. It is necessary machines for veneer dryers and veneer peeling machines.

Wood ChipperWood Crusher

Main Technical Parameter




Model


BX216


Input conveyor length(m)


6


Output conveyor length(m)


11


Tool roll diameter(mm)


600


Feed port size(mm)


230*500


Flying knife number


2pc


Tool roll speed (r/m)


590


Maximum diameter of processing raw material(mm)


230


Feeding speed(m/min )


35


Wood chips size(mm)


30


Capacity(ton/h)


7-8


Main motor power(kw)


55


Feed roller motor power(kw)


3-4


Oil pump motor power(kw)


1.5*1


Weight(kg)


4070


Overall size(mm)


2600*1900*1210


Conveyor motor power(kw)


3
