5 Sections 2 Layers Wire Rope Veneer Dryer
The wire ropes type veneer dryer is the main equipment in the production of plywood. The 5 Sections 2 Layers Wire Rope Veneer Dryer has the production capacity of 1.5m3/h. The wire rope veneer dryer run on waste wood fired furnace or stove. It also run on steam boiler or thermal oil heater.

Product Description


Face veneer dryer is one of the main machines in plywood production used to dry the veneer with thickness less than 1.5mm. It contains front driving frame and back driving frame, heating area and cooling section. The heating area is divided into several sections, and usually each section is 2 meter in length. This machine is customized according to the specific production capacity.

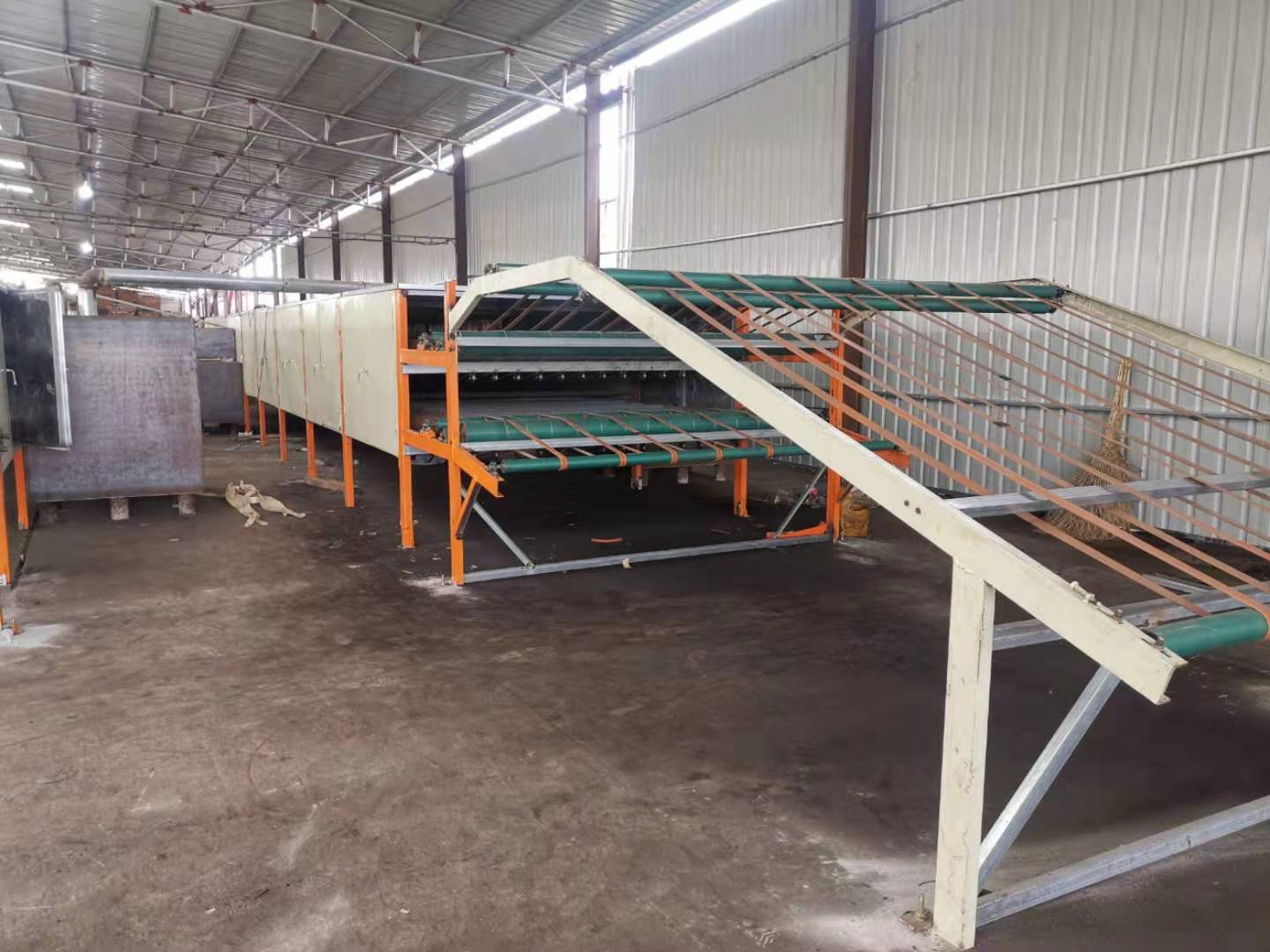

wire dryer face veneer



wire rope veneer dryer on sale



wire rope veneer dryer



face veneer dryer wire rope



stove furnace

Specifications


Item

Specification

Density of Veneer

550-650kg

Veneer Thickness

≤1.5mm

Initial moisture content

60-80%

Final moisture content

10-12%

Working width

2650mm

Length of heating section

2000mm

Length of cooling section

2000mm

Feeding speed

3-36m/min

Working layers

2

Drying capacity

1.5m3/h

Heating medium

Steam or thermal oil

Total power

54.7kw

Conveyor motor

7.5kw*2

Heating fan motor

7.5kw/section

Cooling fan motor

2.2kw*1

Overall size

16700*4100*2900mm

Total weight

23000kgs



Features


1. The wire ropes type veneer dryer is the main equipment in the production of plywood.

2. It is composed of four parts, which are divided into Feeding area, heating area, cooling area and discharging area.

3. It is mainly used for drying core veneer, partial surface and bottom plate.

4. It has high efficiency, low energy consumption, and lower cost, which can better meet the production process of the product.

5. Low professional requirements for workers.

6. This type of dryer can be used for veneers with low flatness requirements.

7. The heat source is a hot air stove 900,000 kcal(coal and waste wood) and the heating source can be changed according to the requirements of different customers.

8. We can design the veneer dryer as customer`s project requirement.

9. The length and layers of our veneer dryer can be customized according to your production capacity.



Project Cases


wire rope veneer dryer project
