Face Veneer Wire Dryer Machine

Product Description


This wire rope machine is used to dry the fresh face veneer and back veneers to dried face and back veneers. The fresh face veneers moisture content is about 60-80%, and after drying the final moisture content is about 8-10%. The wire rope veneer dryer is available to be customized based on the specific drying capacity, veneer dimensions and thickness, and veneer moisture content.

wire rope veneer dryer



face veneer wire rope dryer

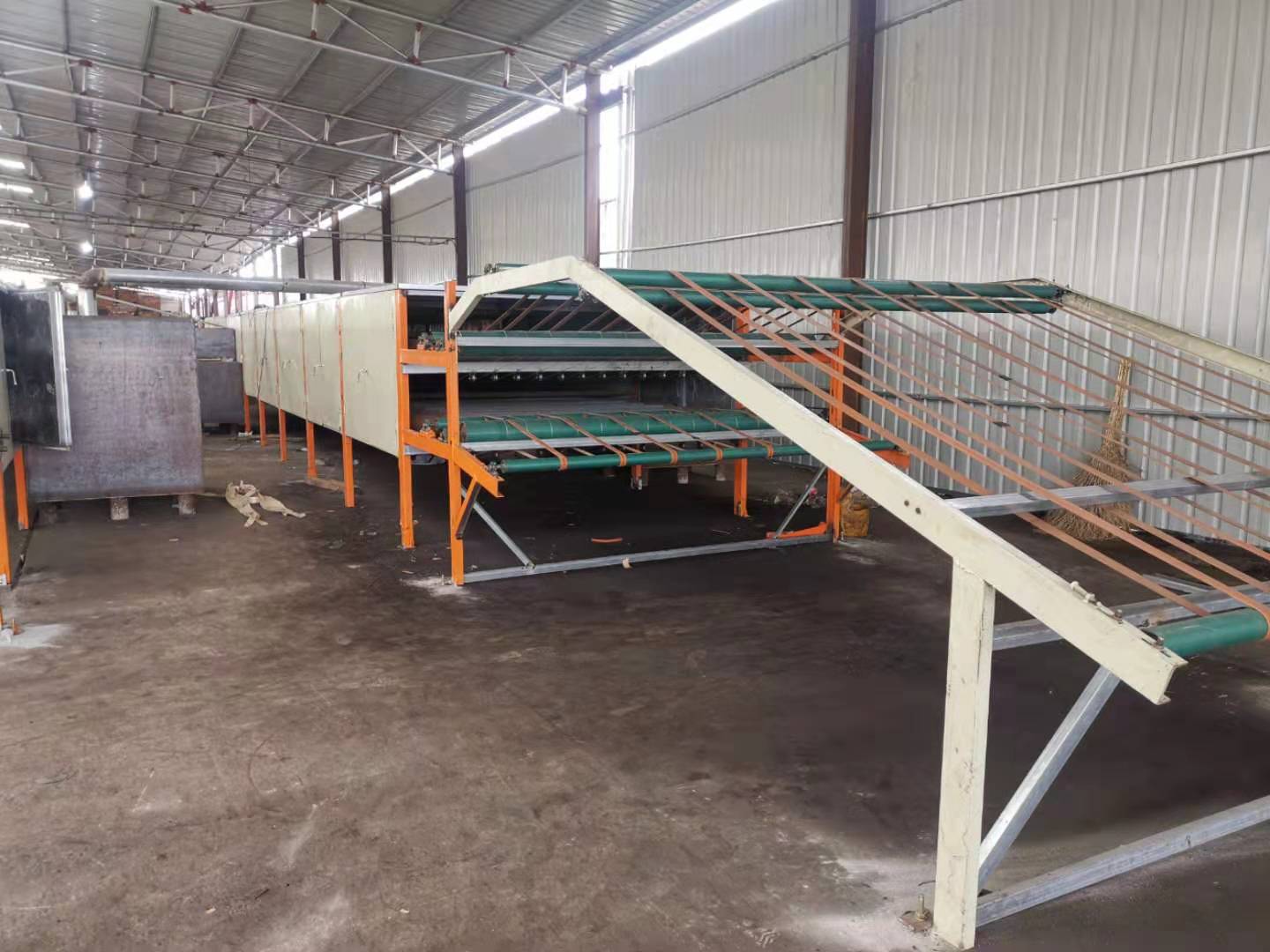

wire rope dryer for face veneer drying



wire dryer face veneer



waste wood fired furnace stove

Specifications


Item

Unit

Specification

Fire Tube Model

mm

∅165×2.75

Furnace Tube Model(SS Steel)

mm

∅168×7

Steel Wire Rope

mm

∅2.5-28pcs

Drying Thickness

mm

0.1-0.6

Roller Diameter

mm

∅168

Roller Diameter

mm

∅108

Roller Diameter

mm

∅89

Motor Power(transmission motor)

KW

4

Air intake motor

kw

4

Frequency Converter(transmission)

KW

5.5

Dryer length (optional)

M

16--30

Feeding length

mm

5000

Discharging length

mm

6000

Dryer Height

mm

2000/2 decks

Dryer Width(optional)

mm

1000----3500

Dryer Weight

KG/m

1000(around)

Container

40HQ

1

Features


1. The wire ropes type veneer dryer is the main equipment in the production of plywood.

2. It is composed of four parts, which are divided into Feeding area, heating area, cooling area and discharging area.

3. It is mainly used for drying core veneer, partial surface and bottom plate.

4. It has high efficiency, low energy consumption, and lower cost, which can better meet the production process of the product.

5. Low professional requirements for workers.

6. This type of dryer can be used for veneers with low flatness requirements.

7. The heat source is a hot air stove 900,000 kcal(coal and waste wood) and the heating source can be changed according to the requirements of different customers.

8. We can design the veneer dryer as customer`s project requirement.

9. The length and layers of our veneer dryer can be customized according to your production capacity.



Project Cases


wire rope veneer dryer project
