48M 2 Deck Roller Veneer Dryer Machine
Shine 2 deck veneer dryer has merits of high-efficiency and saving-energy. Our roller veneer dryer with biomass burner is the most advanced veneer drying machine. Use waste wood as the fuel, energy is saved with no coal, electricity or gas is involved. The composite cost is only about USD 6-12/per cubic meter. With frequency conversion control, Shine 48m 2deck veneer dryer can adjust the speed and temperature automatically. Veneer dryers machine is continuous feeding and drying, so the efficient is very high and save labor cost mostly. Shine 48m 2deck dryer are composed of 44m heating section and 4m cooling section, which can dry veneer from 0.6-8mm and the capacity can achieve 70-75m³ every day.
Main Technical Parameters
|
Model No |
GTH30-48 |
|
Working Width |
3000mm |
|
Roller material |
Q235B, φ89 steel pipe |
|
Number of sections |
12 |
|
Number of decks |
2 |
|
Heating section length |
44m |
|
Cooling section length |
4m |
|
Veneer thickness |
0.6-8mm |
|
Initial moisture content |
50-80% |
|
Final moisture content |
10%（adjustable based on the requirement） |
|
Heating material & drying temperature |
Waste wood, 140-180℃ adjustable |
|
Drying capacity (m³/h) |
3m³ |
|
Veneer delivery speed |
5-22min,(adjustable) |
|
Hot air blower |
Power:11KW(11pc) |
|
Traction motor |
Power:11KW，frequency control(2pc) |
|
Cold air blower |
Power:11KW(1pc) |
|
Air intake fan |
Power:11KW(2pc) |
|
6ton biomass burner |
Power:21.5KW |
|
Total power |
197.5KW |
|
Actual electricity consumption |
About 134KW per hour |
|
All specifications, dimensions & design characteristic are subject to change without prior notice. |
|
48M 2 Deck Roller Veneer Dryer Machine Advantages
1. High temperature roller drum directly contact with wet veneer for heat transfer, so the heat efficiency is high, heat loss is reduced. The veneer after drying has uniform moisture content, flat without buckle or end waviness and the surface is in good condition for gluing.

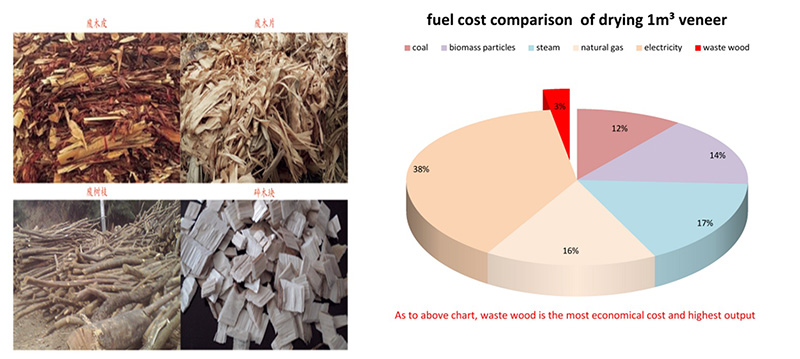

2. Biomass burner is Shine patented product, which can burn all kinds of waste wood directly to reduce fuel cost mostly. It has the main features of environmental protection, high efficiency and energy saving. Compared to the steam type or heat conduction oil type dryer, the drying cost is reduced greatly.
3. Veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve ideal drying effect.
4. Equipped with automatic veneer feeder and automatic collection system, which not only improves the drying efficiency but also saves labor cost mostly.
5. SHINE heat exchanger adopts step by step heat transfer, and the specifications of each section of the heat exchanger is different, and the hot air in the heat exchanger can be uniformly emitted to the veneer.
6. We have a professional R&D team that can design different models according to customer’s special requirement. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, sufficient spare parts supply in time.
7. One-time investment of the equipment is small, highlights the performance-to-price ratio superiority.

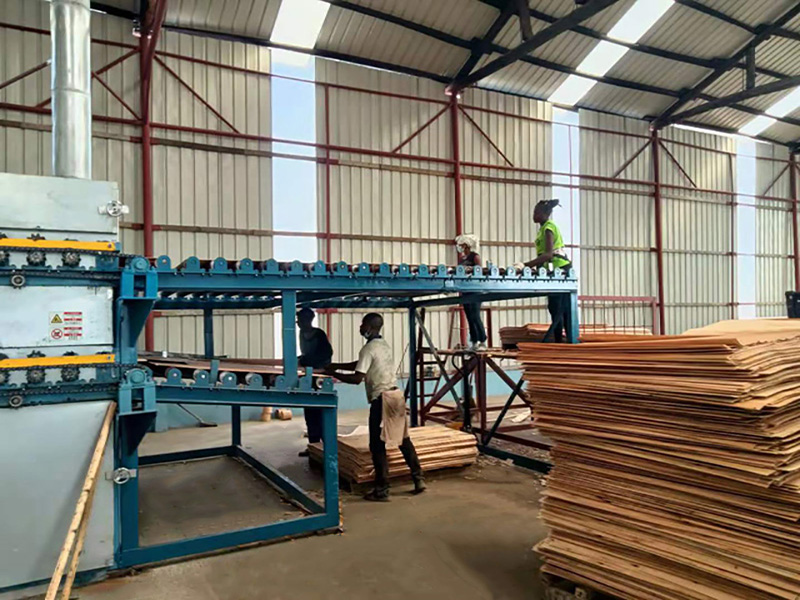

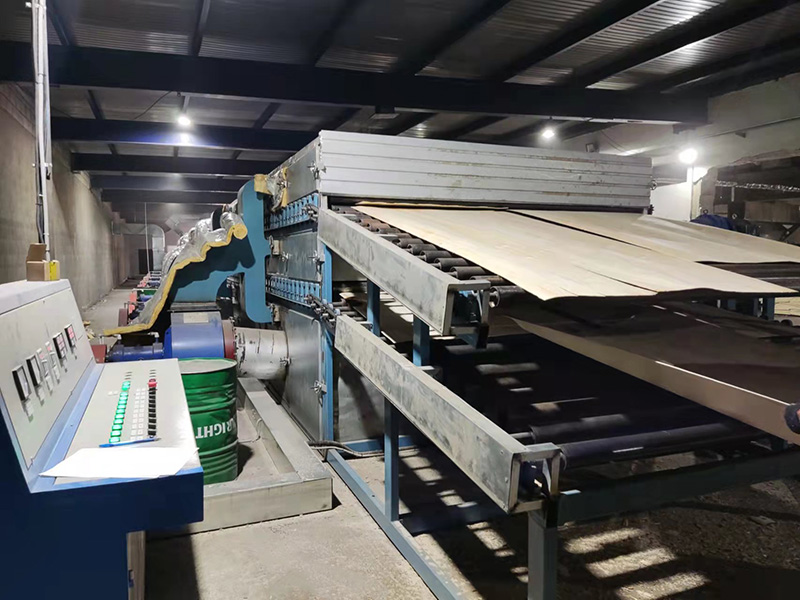

Project Cases
Customers Visit Our Factory

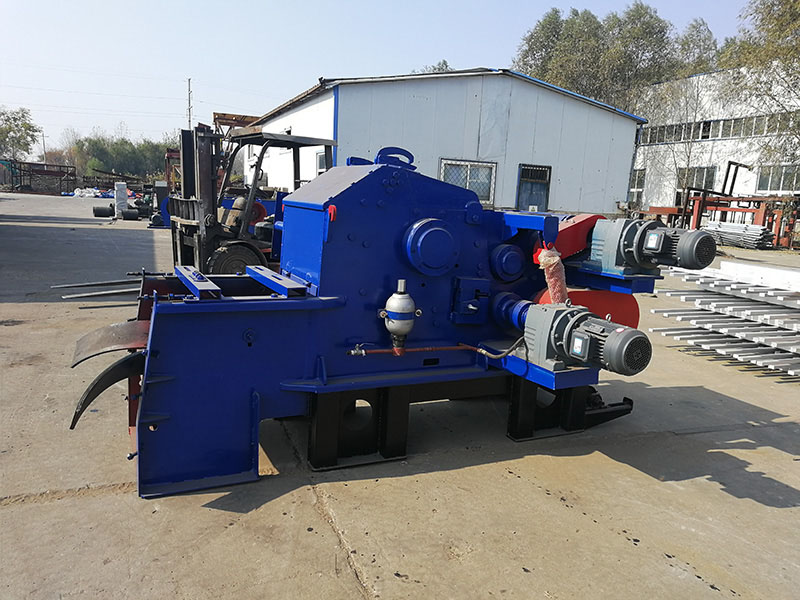

Other Matching Products
