Automatic Roller Wood Veneer Dryer

This veneer dryer adopts automatic electrical control and frequency conversion control. It can automatically regulate conveying speed and operating temperature based on veneer thickness and moisture level, so as to obtain the optimal drying effect for various specifications of veneers.
Equipped with automatic feeding and finished veneer collection devices, the equipment can significantly boost production efficiency and achieve substantial labor cost savings.

Shine's roller veneer dryer is specially engineered to dry core veneers with thickness ranging from 0.8 mm to 8 mm, perfectly matching the processing demands of plywood and veneer production lines.

It adopts an advanced multi-stage heat exchange structure, which delivers excellent heat transfer efficiency and greatly reduces heat loss, ensuring uniform heating across every sheet of veneer and effectively preventing warping, cracking and uneven drying caused by traditional open-air sun drying.

The machine supports flexible heating solutions: steam boiler, thermal oil heater and biomass burner are all available for selection. Using a biomass burner can maximize fuel cost savings and lower long-term operational expenditure.

When heated by the biomass burner, the overall comprehensive drying cost of this roller dryer is as low as around USD 10 per cubic meter, covering all expenses including labor, fuel and electricity consumption.

Unlike natural outdoor drying that is restricted by limited yard space and rainy seasons, our roller veneer dryer enables stable 24-hour continuous production all year round, helping you avoid production delays and improve your overall factory output consistently.

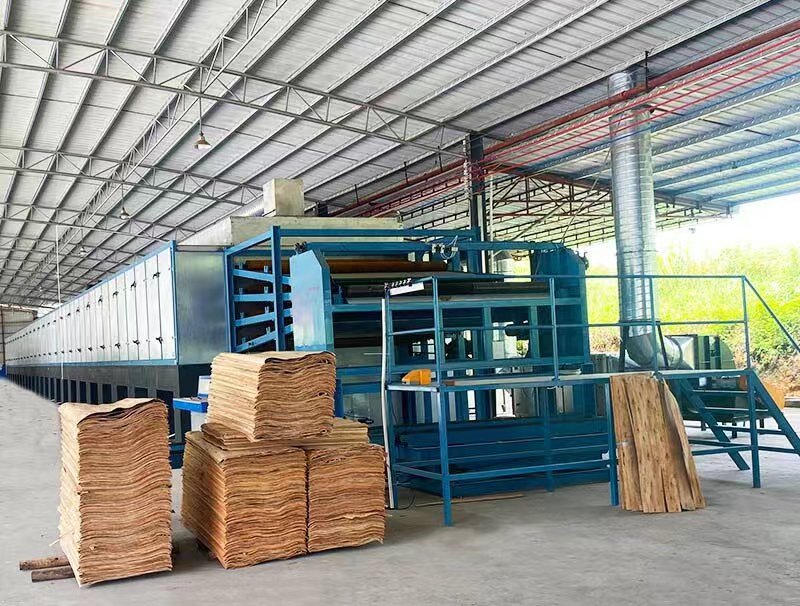

fully automatic veneer dryer

Advantages Of Veneer Dryer Machine

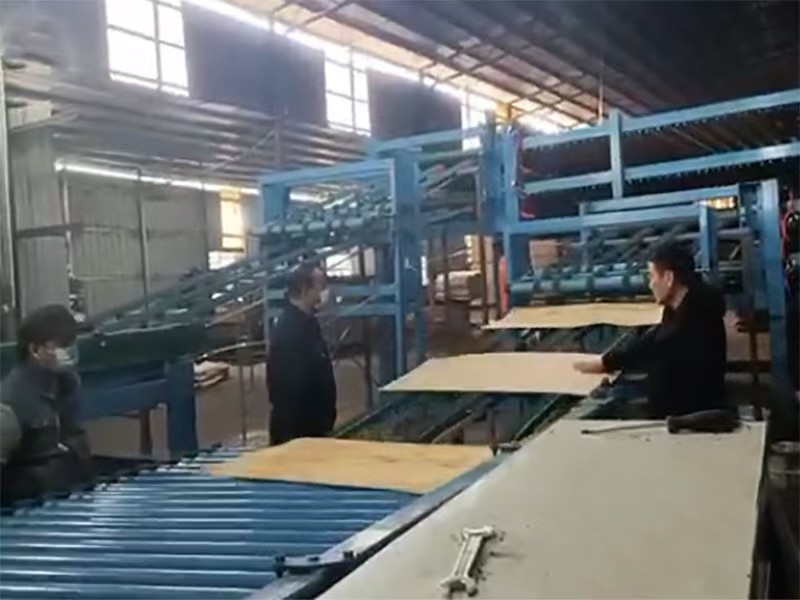

collection system

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Of Dryer

Parameter Model	DHS32M	DHS34M	DHS36M	DHS38M	DHS40M	DHS42M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	28	30	32	34	36	38
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 5	About 5.5	About 5.8	About 6.2	About 6.6	About 7
Heat exhaustion（10000 kcal/h）	About 175	About192	About203	About217	About231	About245
Total power (kw) about	135	140	145	150	155	160
Overall size LxW（m）	43*5.5	45*5.5	47*5.5	49*5.5	51*5.5	53.*5.5

Customer Case

Shine's dryers have a presence in over 20 countries worldwide, with successful customer case studies in Europe, Southeast Asia, North America, and other regions. By visiting these nearby case studies, you can engage in in-depth discussions with local customers and understand their real-world experiences using the equipment, including details on daily operation, maintenance, and production efficiency. This will help you gain a more intuitive and comprehensive understanding of Shenghuai drying equipment, providing a more reliable basis for your investment decisions. We are always ready to connect you with suitable case studies and look forward to helping you better understand our products.

Customer Case

Exhibitions and customer visits

Exhibition

Customer visit pictures
