Biomass Heated Veneer Dryer Machine | Roller Veneer Dryer- Shandong Shine Machinery Co.,Ltd

Biomass Heated Veneer Dryer Machine

Shine’s dryer is mainly used in the wood processing industry, especially in the production process of plywood, veneers and other wood plate. Shine veneer dryer adopts roller design, which is driven by a chain to rotate the upper and lower drums relative to each other. It uses hot air and other drying media to dry the veneer, which has the advantages of simple operation, smooth operation, low board jamming, and easy maintenance.

Biomass-fired veneer dryers are key auxiliary equipment for large-scale plywood production lines, helping you boost productivity and cut operational costs.

Veneer moisture directly impacts overall drying duration. For instance, the moisture ratio of redwood heartwood sourced from different logs can vary by as much as 2:1. Heartwood veneer with higher moisture requires substantially longer drying cycles compared to drier heartwood of the same species. It is the actual water volume within the veneer, not merely its percentage moisture content, that acts as the critical determining factor.

This makes veneer dryers a sensible investment for plywood manufacturers. Shine biomass veneer dryers enjoy widespread recognition for ultra-low operating costs, high drying throughput, superior energy efficiency, and consistent premium-quality veneer output.

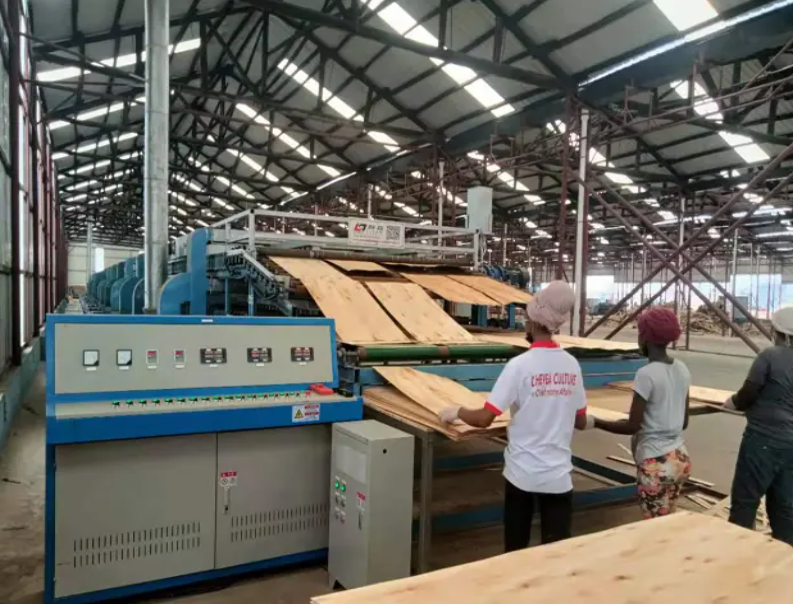

veneers dryer

Advantages Of Veneers Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

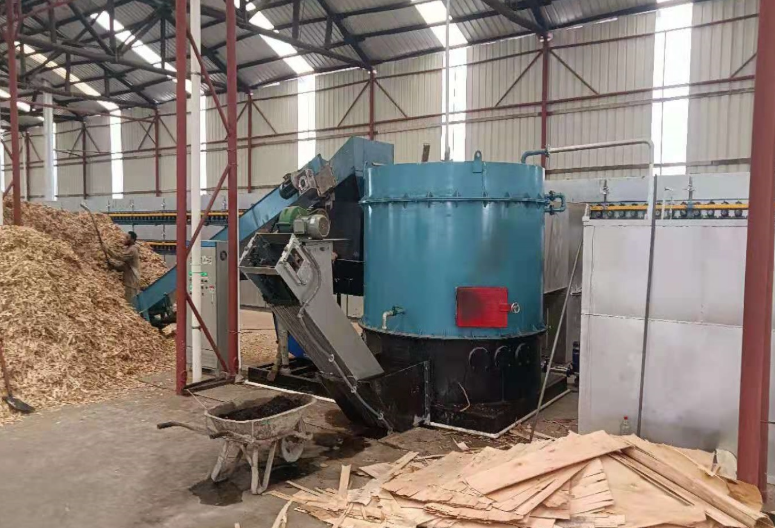

biomass burner

Parameter Of Dryer

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width(m)	3	3	3	3	3
Layer	2	2	2	2	2
Veneer thickness(mm)	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Heating area (m)	40	44	48	52	56
Cooling area (m)	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	2.7-3.1	3-3.3	3.2-3.5	3.5-3.8	3.8-4.1
Heat exhaustion(10000 kcal)	94.5-108.5	105-115.5	112-122.5	122-132	132-143
Total power (kw)	154	169	180	198	209
Overall size LxWxH(m)	444.52.27	484.52.27	524.52.27	564.52.27	604.52.27

Customer Case

Shine's wood veneers dryer have a global footprint spanning over 20 countries, with successful customer case studies in Europe, Southeast Asia, and North America. These widespread examples not only serve as strong evidence of our equipment's quality but also provide potential clients with a valuable opportunity to learn more about our machines.

In Europe, besides plywood factories in Latvia, timber processing companies in countries like Brazil, Romania, and Russia are also using our veneer dryers. One company specializing in high-end decorative panels has extremely high requirements for the precision and environmental friendliness of wood drying. After introducing Shenghuai dryers, their decorative panels, known for their smooth surfaces and natural textures, have become highly sought after in the market.
