High Productivity Core Veneer Dryers

The biomass burner is an exclusive patented product independently developed by Shine Machinery. Capable of directly combusting a full range of wood residual wastes including wood shavings, sawdust, veneer scraps, branch cuttings and leftover timber materials generated throughout the wood processing workshop, it drastically cuts down overall thermal energy consumption and slashes veneer drying expenses to the greatest extent. When put side by side with conventional veneer drying systems powered by steam boilers or thermal conduction oil furnaces, our integrated biomass heating drying solution delivers a remarkably prominent reduction in comprehensive drying operational costs for veneer production lines.

The roller veneer dryer serves as indispensable core equipment throughout the entire plywood manufacturing workflow. After being dried on this machine, veneers attain consistent, even moisture content and maintain optimal physical conditions ready for the subsequent gluing procedure. Veneers processed via roller drying stay perfectly flat, free from bowing, warping and edge rippling defects.

Shine Machinery’s biomass-powered roller veneer dryers have earned widespread recognition and praise globally, thanks to ultra-low operating expenses, large hourly drying throughput, outstanding energy-saving performance and stable production of premium-grade dried veneers. Designed specifically for drying both face veneers and core veneers used in plywood and wood flooring substrates, our drying machines are the preferred choice for plywood manufacturers domestically and across overseas markets.

Factoring in labor expenses, fuel consumption and electricity charges, the comprehensive overall drying cost of our biomass veneer drying system averages approximately 10 US dollars per cubic meter of processed veneer.

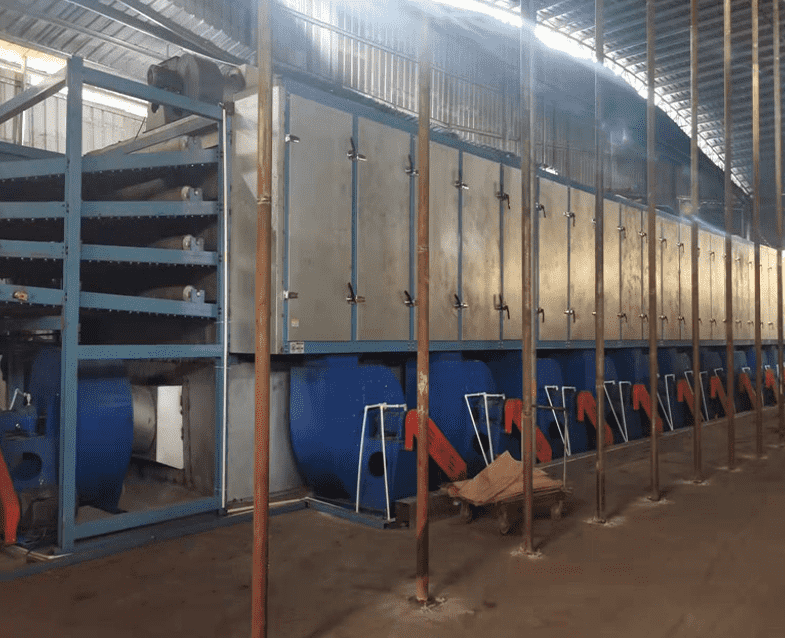

high capacity veneer dryer

Advantages Of Veneer Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

Parameter Model	DHS20M	DHS22M	DHS24M	DHS26M	DHS28M	DHS30M
Work width（m）	3	3	3	3	3	3
Deck	4	4	4	4	4	4
Veneer thickness（mm）	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8	0.6-8
Heating area （m）	16	18	20	22	24	26
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	About 3	About 3.3	About 3.6	About 4	About 4.4	About 4.8
Heat exhaustion（10000 kcal/h）	About 105	About115	About126	About140	About 154	About168
Total power (kw) about	105	110	115	120	125	130
Overall size LxW（m）	31*5.5	33*5.5	35*5.5	37*5.5	39*5.5	41.*5.5
